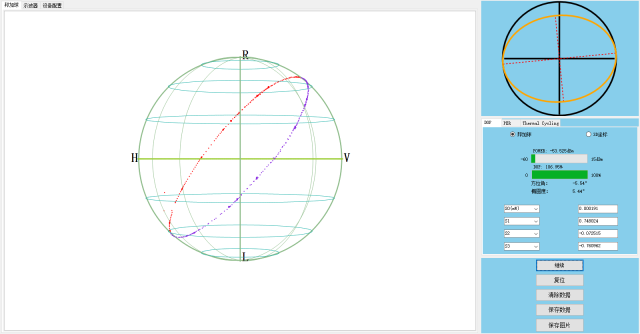

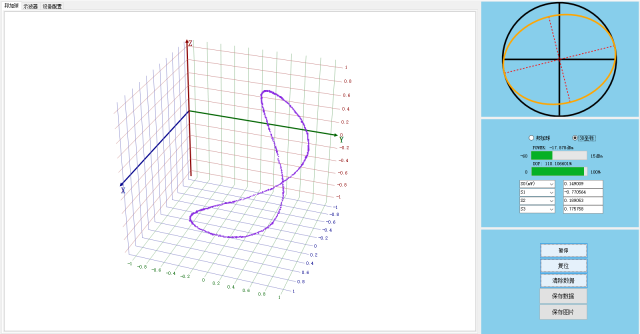

1. Polarization state analysis and monitoring
2. Polarization measurement
3. Extinction ratio measurement (with fiber self-circulating heater)
4. Rotation Angle measurement
|

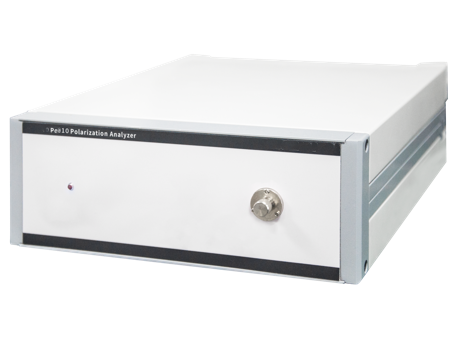

Model |
FF-8610 |
|
Wavelength range |
1270-1650nm |
|
SOP accuracy |
0.25° |
|
DOP accuracy |
1% |
|
PER measuring range |
0-40dB |
|
PER resolution |
0.1dB |
|
Input optical power range |
-40~+10dBm |
|
Sampling rate |
100hz |
|
Port |
FC or space collimation light |
|
Light aperture |
3mm |
|
Maximum deviation Angle of collimating light |
2° |
|
Size |
235*104*300 mm |
